Introduction

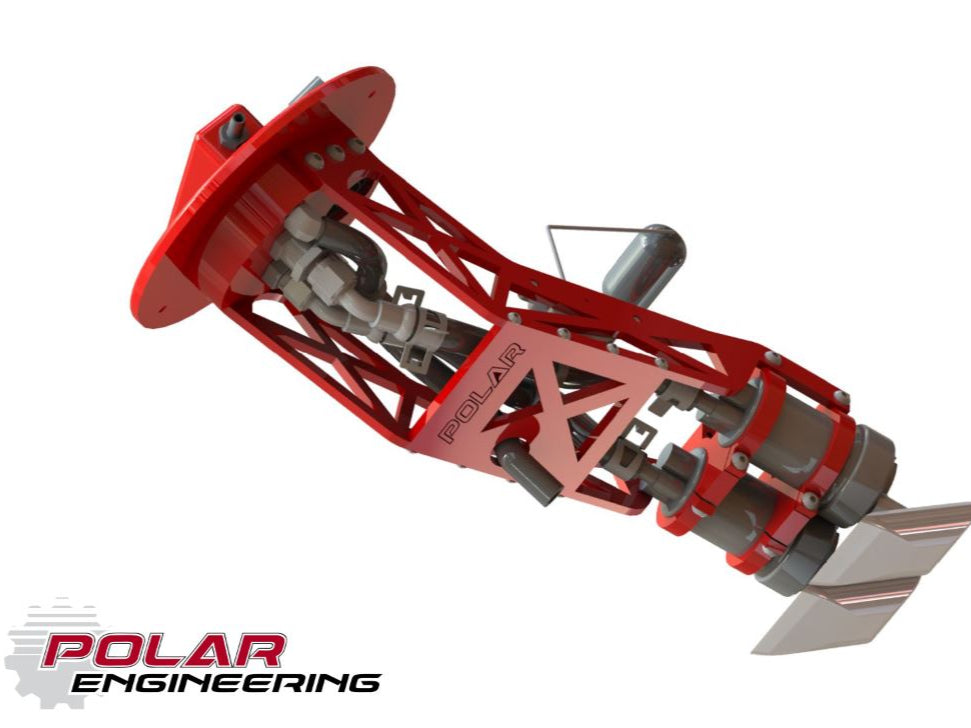

The Nissan Z32 300ZX fuel system is one of those things that works fine until it doesn't — and when it fails, it fails at the worst possible moment. Whether you're dealing with a tired factory pump, planning a power build, or just future-proofing your Z, the factory hanger setup was never designed with modern performance in mind. Polar Engineering's Modular Fuel Pump Hanger changes that with a fully engineered, drop-in solution built specifically for the Z32 saddle-shaped fuel tank.
One Hanger, Your Setup
The core idea behind this hanger is modularity. Every Z32 owner's situation is different — some are running a lightly modified street car, others are chasing serious power numbers. Rather than forcing a one-type-fits-all solution, the 2+0 hanger is designed to accommodate your needs now and scale with your build later.
The 2+0 model hanger, supports up to two fuel pumps. Pump options include single or dual configurations of the Walbro 255, Walbro 450/525, or staged combinations — and if you want something custom (Deatchwerks), just ask.
Built to Last, Built to Flow
Every detail of this hanger was engineered for reliability and performance:
- CNC machined 6061 aluminum top hat and pump clamps — precision fit, built to survive in-tank conditions
- Waterjet cut 5052 aluminum uprights and supports — lightweight and corrosion resistant
- Type II anodized finish — prevents corrosion from all types of fuels
- True 8AN ORB supply and return ports — massive flow potential; comes with barbed fittings by default, upgradeable to 6AN or 8AN at no extra cost
- High-flow custom siphon (highest flow on the market) — scavenges fuel from the opposite side of the Z32 saddle tank, just like the factory system, with no additional modifications required
- E85 and race gas compatible throughout — all in-tank hoses, O-rings, and seals are submersible and ethanol-safe
Electrical Done Right
The hanger uses a 6-wire, 90-degree bulkhead electrical connector with 4 heavy gauge wires for pump power/ground and 2 wires for sensor output. The connector is secured with a snap ring and sealed with an O-ring, and its orientation can be adjusted simply by rotating it — clean, functional, and reliable.
All power wires are high grade 12awg stranded copper. Sensor wires are 18awg stranded copper. All in-tank wiring is PTFE coated.
Better yet, the hanger ships with a brand new fuel level sensor and low fuel light thermistor, both spec'd to factory standards. Your cluster gauges will read correctly, and compatibility with digital dashes like the Haltech IC-7 has been confirmed.
Installation
This is designed to be a true drop-in solution — target install time is under one hour with factory fuel lines. Pumps are not included with the base hanger, but you have options: send your pumps in to have them professionally installed and wired, or source pumps through Polar Engineering directly and have your hagner arrive with brand new pumps ready to go.
Pricing & Shipping
The 2+0 Modular Fuel Pump Hanger is priced at $650 USD. Shipping is calculated at checkout. Current lead time is 2–4 weeks.
The Bottom Line
If your Z32's fuel system is holding back your build — or you just want to do it right the first time — this hanger is the answer. It's modular, it's engineered with no shortcuts, and it installs in under an hour. Whether you're on 93 octane or E85, the Polar Engineering 2+0 Modular Fuel Pump Hanger has you covered.
