Introduction

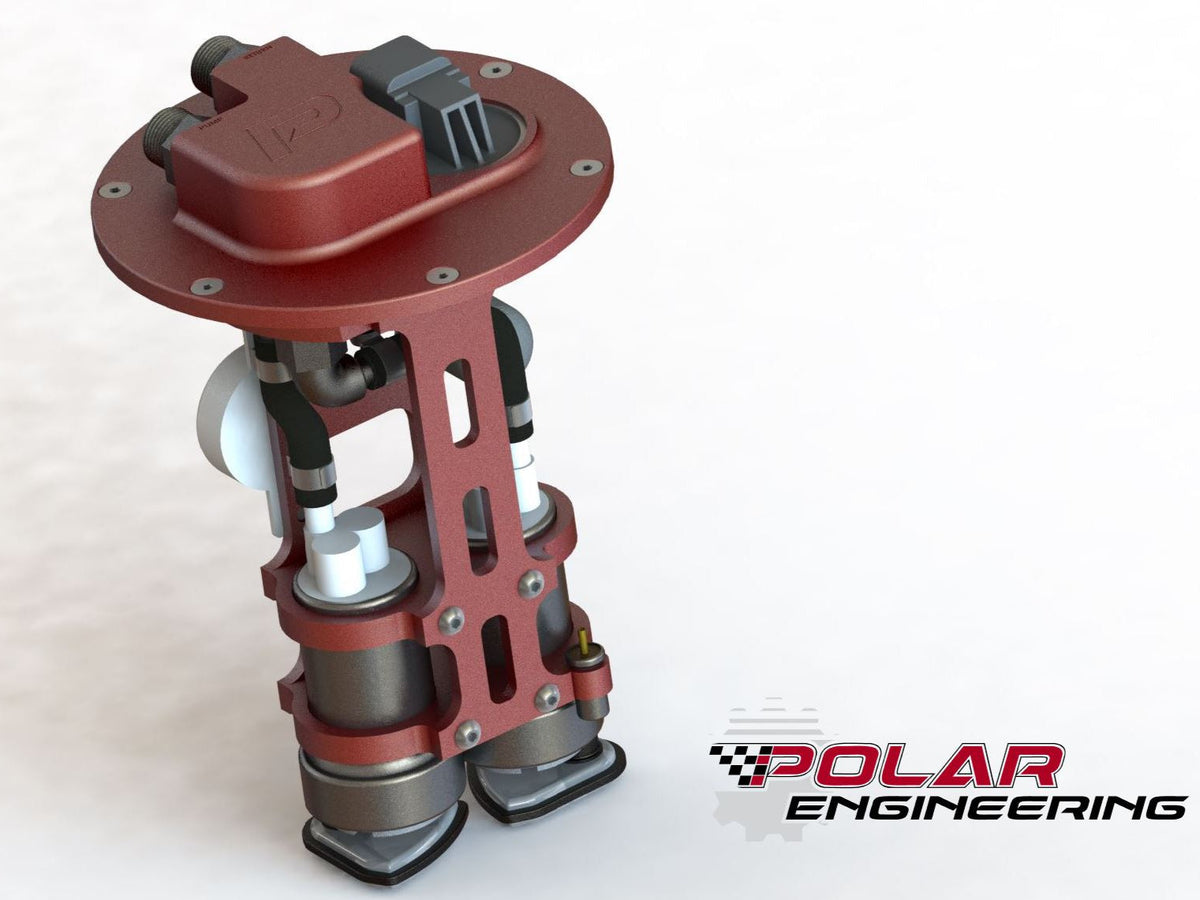

When you're pushing serious power out of a VG30DE/TT, the factory Z32 fuel system becomes the weak link fast. A single pump running tired rubber lines through an aging hanger isn't going to cut it when you're chasing big numbers — especially on E85. The Polar Engineering 2+2 Modular Fuel Pump Hanger is the solution: a purpose-built, dual-pump capable hanger designed specifically for the Z32 2+2 tank, hand-assembled in Florida, and engineered to last.
Engineering Highlights
Every component was selected and designed to perform:
- CNC machined 6061 aluminum top hat — precision fit, built to last in-tank
- Waterjet cut 5052 aluminum uprights and clamps — lightweight and fully corrosion resistant
- Type II anodized finish — hanger available in black; fittings and valves are black throughout
- True 8AN ORB supply and return ports — comes with barbed fittings by default, upgradeable to 6AN or 8AN at no extra cost
- E85 safe from top to bottom — all in-tank hoses, O-rings, and seals are submersible and ethanol-compatible
- Stainless caged pump strainers at 100 microns — proper filtration for every pump position
- Optional Holley HydraMat — available at extra cost for those who want the ultimate fuel pickup solution
Electrical Done Right
The hanger uses a 6-wire, 90-degree bulkhead electrical connector with 4 heavy gauge wires for pump power/ground and 2 wires for sensor output. The connector is secured with a snap ring and sealed with an O-ring, and its orientation can be adjusted simply by rotating it — clean, functional, and reliable.
All power wires are high grade 12awg stranded copper. Sensor wires are 18awg stranded copper. All in-tank wiring is PTFE coated.
Better yet, the hanger ships with a brand new fuel level sensor and low fuel light thermistor, both spec'd to factory standards. Your cluster gauges will read correctly, and compatibility with digital dashes like the Haltech IC-7 has been confirmed.
In Stock and Ready to Ship
Unlike made-to-order alternatives, the 2+2 hanger ships within 2 business days of placing your order. Everything arrives pre-assembled and pre-wired, ready to drop in. Target install time is under one hour with factory fuel lines.
Pumps are not included by default, but you can bundle them with your order and they'll be installed, plumbed, and wired in before it ships to you.
Pricing
The 2+2 Modular Fuel Pump Hanger is $650 USD. Designed in the USA, hand-assembled in Florida. For the engineering, the features, and the peace of mind — it's priced fairly and without corners cut.
The Bottom Line
If your Z32 is at the point where fuel delivery is the limiting factor, the Polar Engineering 2+2 Modular Fuel Pump Hanger is the upgrade that solves it for good. Scalable from a single street pump to a full dual-pump performance setup, E85-ready, plug-and-play electrical, and in stock now. Order today and it ships in 2 business days.
