The Problem with Traditional Sensor Setups on a Swapped Z32
If you're a Nissan Z32 300ZX owner who's ditched the factory mass airflow sensor in favor of an aftermarket engine management system, you already know the headaches that come with it. Installing an Intake Air Temperature (IAT) sensor on top of the plenum means it sticks up awkwardly with a connector pointing skyward — not exactly the clean look you're going for. And a proper 3+ BAR Manifold Pressure Sensor (MAP)? Expensive, bulky, and still requires a vacuum hose running across your engine bay.
There's a better way.
One Sensor to Rule Them All
Bosch — a trusted OEM supplier across Europe — makes a series of combined IAT/MAP sensors used in European factory applications. The standout is a single, slim 4-wire unit that measures both intake air temperature and manifold pressure up to 3.5 BAR (~37 psi boost). One connector. No hoses. No clutter.
This sensor is already popular with Motec standalone ECUs, and Polar Engineering has confirmed calibration compatibility with Haltech and AEM systems. Any reputable ECU should work with the appropriate calibration file.
The Adapter: Billet Aluminum, Beautifully Integrated
The heart of this solution is a CAD-designed, billet 6061 aluminum adapter plate — Type II anodized in black — that installs directly in place of your EGR flange on the driver's side (USDM). Here's how it works:
- The adapter seals to the plenum with a precision o-ring
- Two countersunk bolts hold it securely in place
- The Bosch sensor drops in, makes an airtight o-ringed seal, and is secured with a single bolt
The result is a factory-clean installation that's especially popular with wire-tucked show cars and engine bay purists alike.

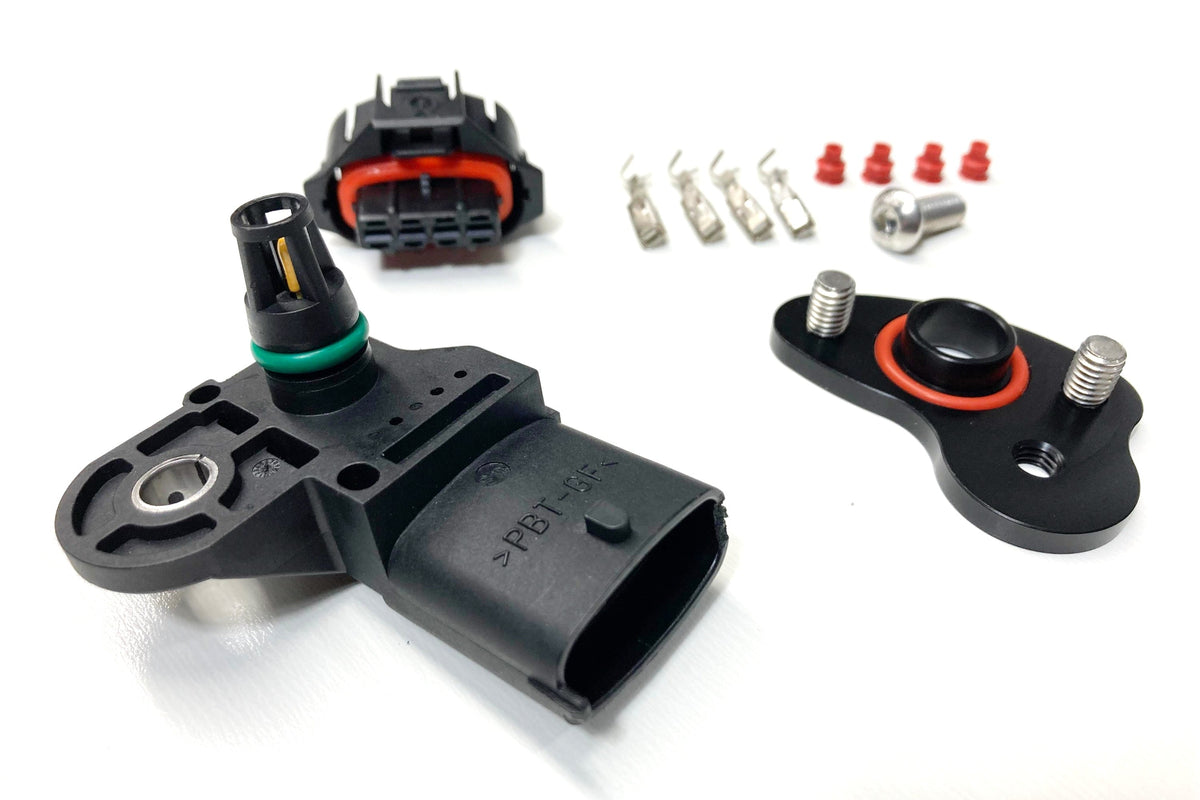

What's Included in the Basic Adapter Kit
- CAD-designed billet aluminum 6061 adapter plate — Type II anodized black
- Stainless steel mounting hardware with hex drive
- O-ring for an airtight seal against the Z32 plenum
- Electrical connector for the BOSCH sensor (4-wire with terminals and insulators)
Options to Fit Your Build
Not every build needs both functions. That's why this kit is flexible:
- IAT only — a sensor that bolts right up if you only need air temperature
- MAP only — a dedicated pressure sensor variant
- Dual function IAT/MAP — the genuine BOSCH 3.5 BAR sensor, available as a bundle with your adapter kit
The Bottom Line
For Z32 owners running aftermarket engine management, this IAT/MAP sensor adapter is one of the cleanest, most functional upgrades you can make. It solves the IAT and MAP sensor problem in one tidy package — no hoses, no awkward mounting, no compromise on boost capability.
