Introduction

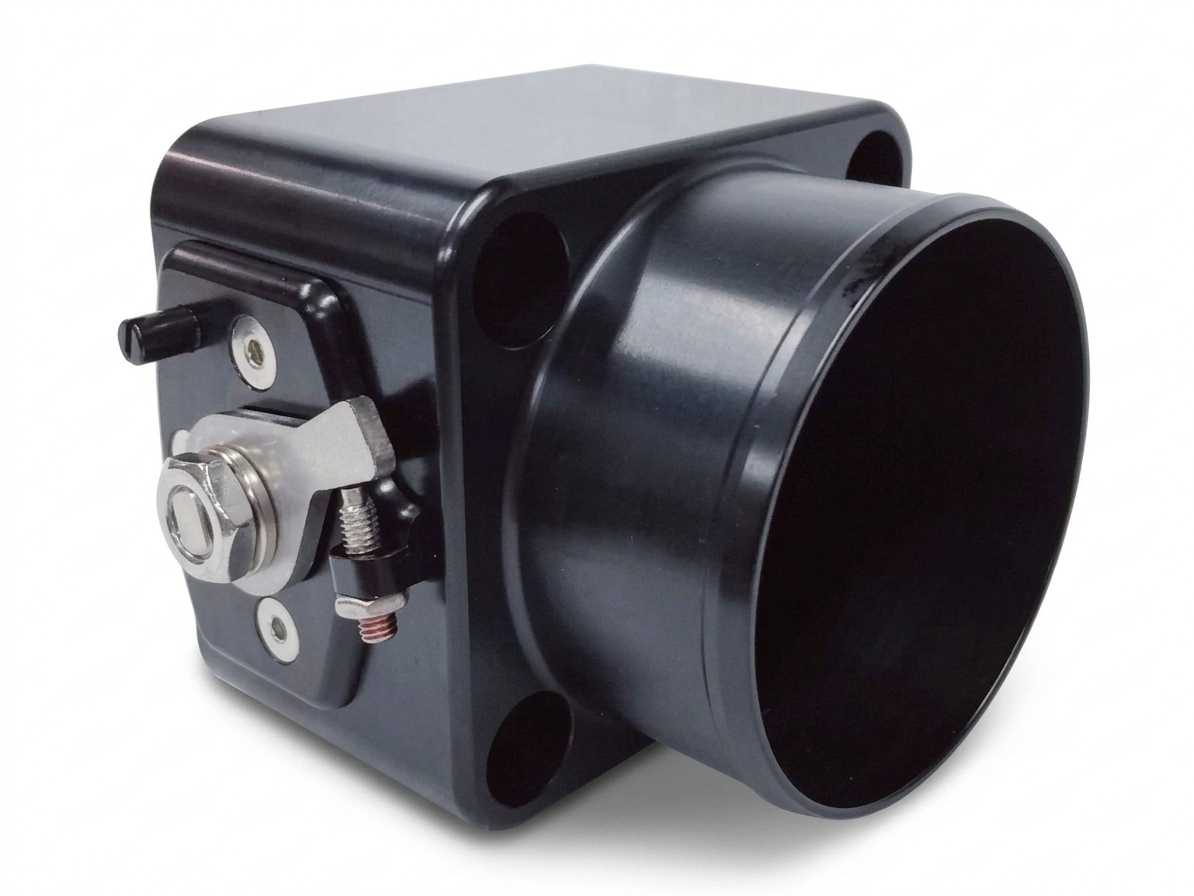

Throttle bodies are one of those components that rarely get attention until they become the bottleneck. The factory Z32 300ZX units were fine for a stock VG30DE/TT, but for anyone running boost, planning a drive-by-wire conversion, or simply wanting the best hardware under the plenum, they're overdue for an upgrade. Polar Engineering's 62mm Billet Throttle Bodies are the result of over a year of development work — engineered with CFD analysis, high-pressure shaft seals, and aerospace-grade materials to handle whatever you throw at the VG30.
Why 62mm?
The 62mm bore isn't an arbitrary number — it's the largest diameter that can be safely machined into factory-style Z32 intake manifolds without risking thin-wall casting failure. More bore means more airflow, and more airflow means more power potential, particularly at higher boost levels. To take advantage of this, your intake manifold inlets will need to be opened up to 62mm — a straightforward machine shop job (or a couple of hours with a grinder) that unlocks everything these throttle bodies can offer.
Engineered for High Boost and High Vacuum
One of the core design goals was building a throttle body that performs at the extremes — both under high boost and at idle/deceleration vacuum conditions. That's a harder problem than it sounds, and it's why these stand apart:
- 6061 aluminum housing, 2024-T3 throttle plates, stainless steel shafts and hardware — corrosion resistant, lightweight, and built for longevity
- High-pressure shaft seals — tested to 35 psi boost and 28 inHg vacuum; the same seal spec used in other high-performance forced induction throttle bodies
- Two seals and two bearings per throttle body — precise, smooth operation across the full range of throttle travel
- Elliptical, streamlined throttle shaft profile — reduced cross-sectional area promotes laminar airflow and reduces turbulence through the assembly, a meaningful gain over a round shaft design
- High-temperature O-ring replaces the factory paper gasket — a better seal, every time
TPS Options — Cable and DBW Ready
These throttle bodies were designed hand-in-hand with Polar Engineering's upcoming drive-by-wire conversion system for the Z32. That means TPS compatibility is built in from the ground up:
- HELLA TPS mount (default) — modern single-channel sensor for throttle-by-cable setups; sensor available as an add-on
- Factory TPS mount — for those keeping the factory Z32 throttle position sensor; mounting plate included at no extra cost
When the DBW conversion kit launches, these throttle bodies will be a direct-fit component for the complete system — future-proofing your build today.
Installation Notes
- Direct bolt-on to factory-style Z32 throttle body manifold configuration (left and right side set)
- Your factory throttle body return mechanism transfers over to these units
- Intake manifold inlets need to be bored to 62mm
Make It Yours
Available in three anodized finishes — clear silver, black, or red — or any custom color for an $80 fee per set. Every set ships as a matched left/right pair, finished and ready to install.
Pricing
All configurations are priced at $700 USD. Current lead time is 2–4 weeks, with over 50 sets of housings and throttle plates already in production.
The Bottom Line
Whether you're building the ultimate high-boost Z32 street car, prepping for a drive-by-wire conversion, or just want the best throttle bodies the platform has ever seen, the Polar Engineering 62mm Billet Throttle Bodies deliver on every front. Engineered without shortcuts, tested at the extremes, and built to last.
